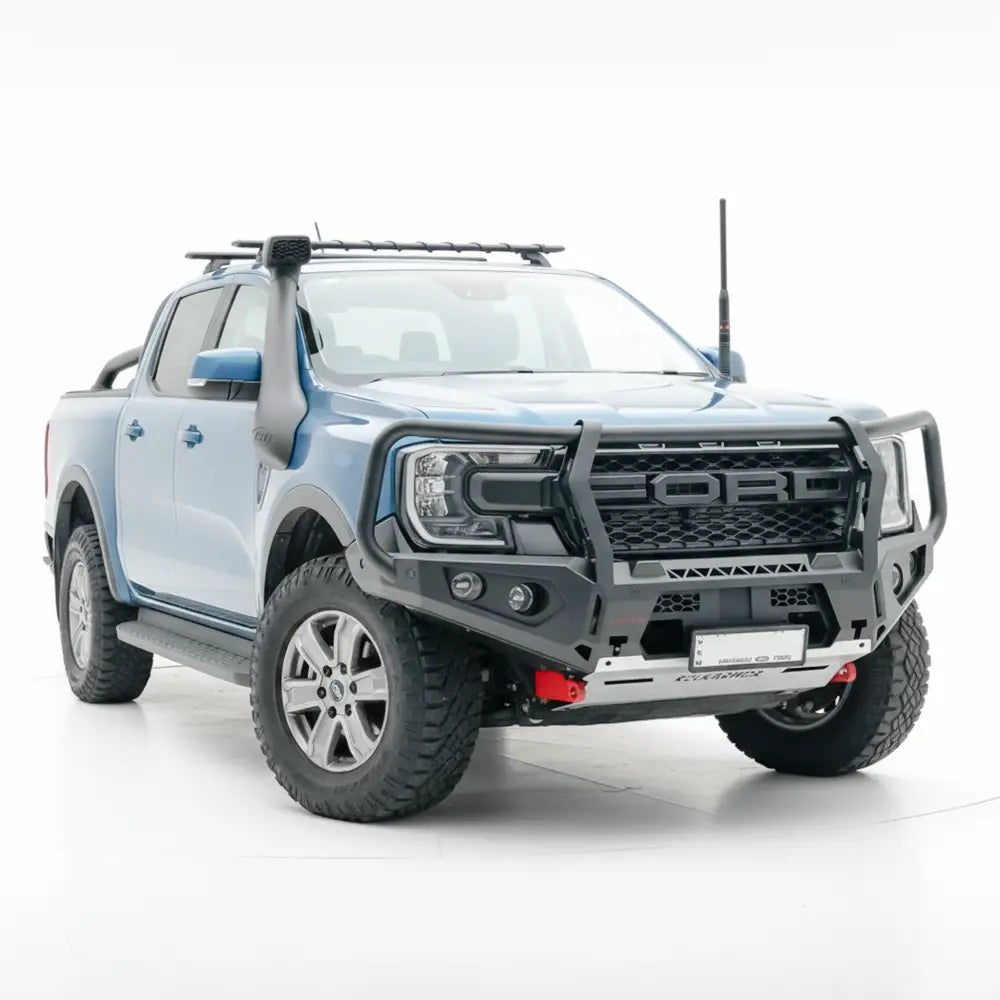

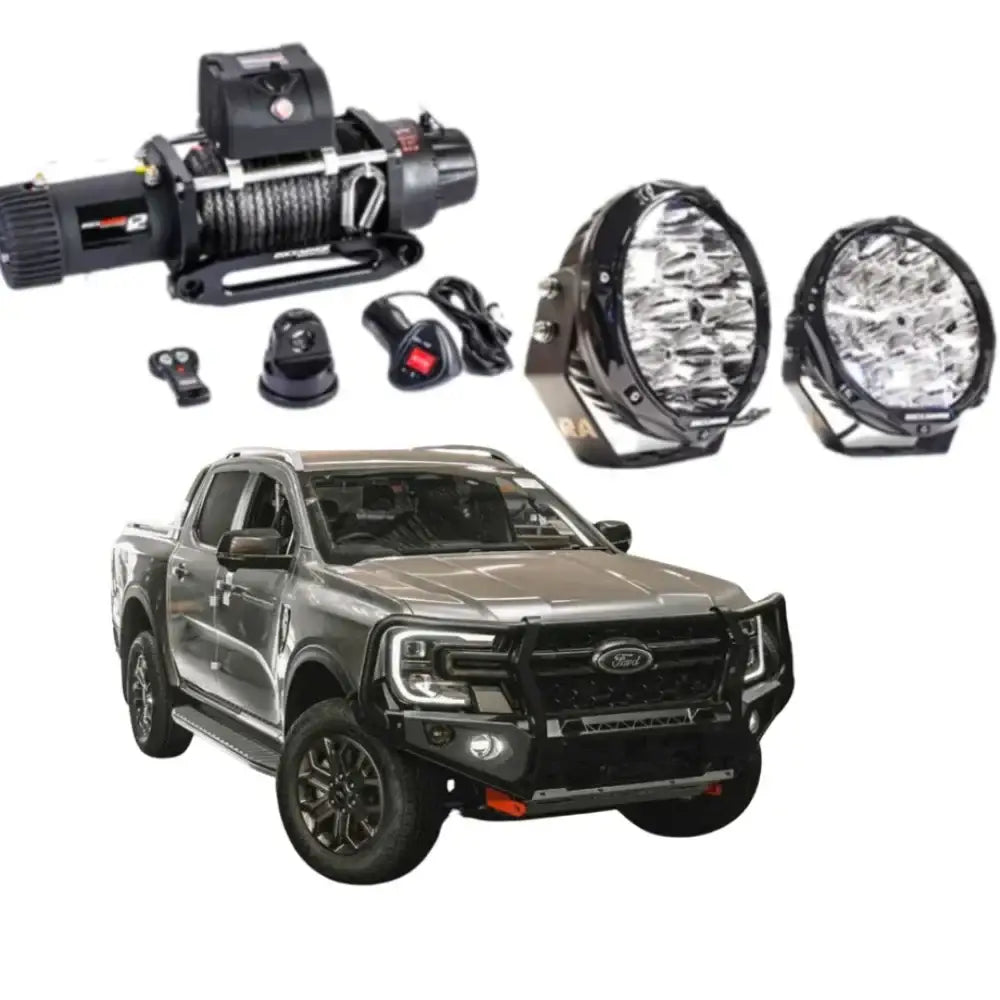

Rockarmor Gt Steel Hoop Bullbar Combo - Next Gen Ford Ranger 22+

ROCKARMOR GT STEEL HOOP BULLBAR COMBO- NEXT GEN FORD RANGER

Designed in Sydney Australia, Rockarmor’s design team left no stone unturned, making sure the Rockarmor GT Bull Bar would cater for all Next Gen Ford Ranger owners.

With the combination of aggressive lines & sleek touches, which is sure to seek attention from fellow 4wd lovers, Rockarmor’s engineers intergrated every essential feature that benefits all Next Gen Ranger owners for all types of terrains & situations they may encounter

Features & Specifications:

• Built in 3.2Tonne Rated Recovery Points (Each recovery point) *Soft Shackle Compatible)
• 51mm Top cross tube for maximum frontal protection
• Durable 2.8mm High Quality steel construction for maximum protection
• Designed for high approach angles (great for off-road)
• Built in LED FOG lights & LED Indicator, compatible with factory controls
• Extended Silver Centre Bash Plate (Protects Front)
• ADR Complied Air bag compatible mounting system
• Factory Sensor Compatible
• Side under Protection panels Included
• Twin Slotted Antenna Mounts located on top Cross Tube
• Twin Hi-Lift jack points
• Front Protection Buffers
• Accommodation for a Electric Winch up to 12,000 pound (Built in winch plate)
• Laser cut mounting Holes to accommodate for driving lights (Ability to mount 2 x 9" LED Driving Lights)
• Shot blasted, Chemical Washed (for extra protection against rust) Finished off in a high quality black powder coat finish

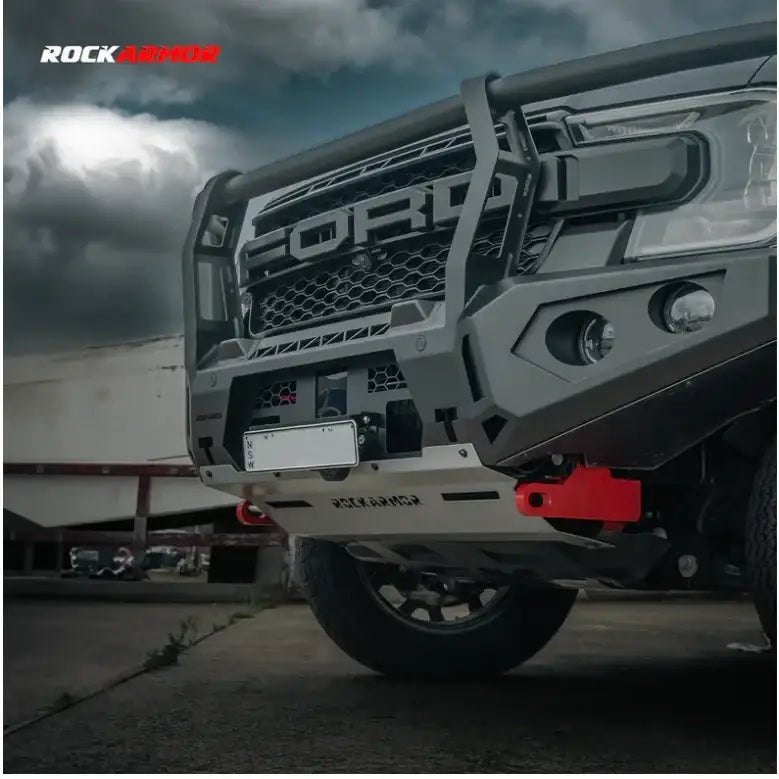

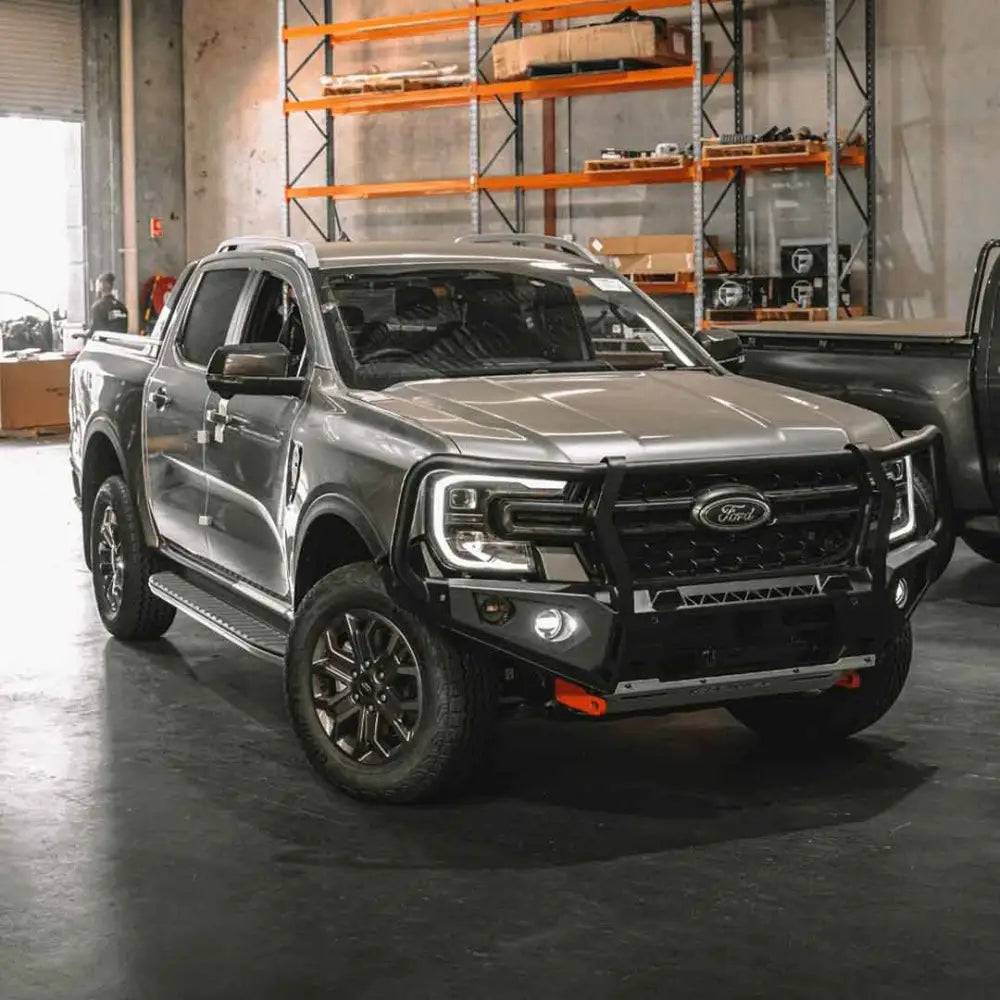

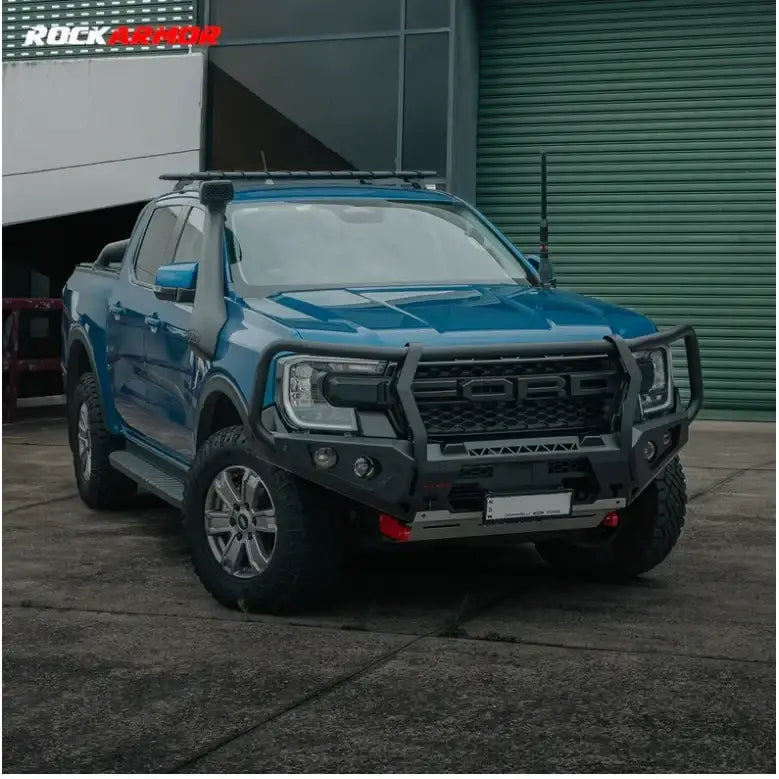

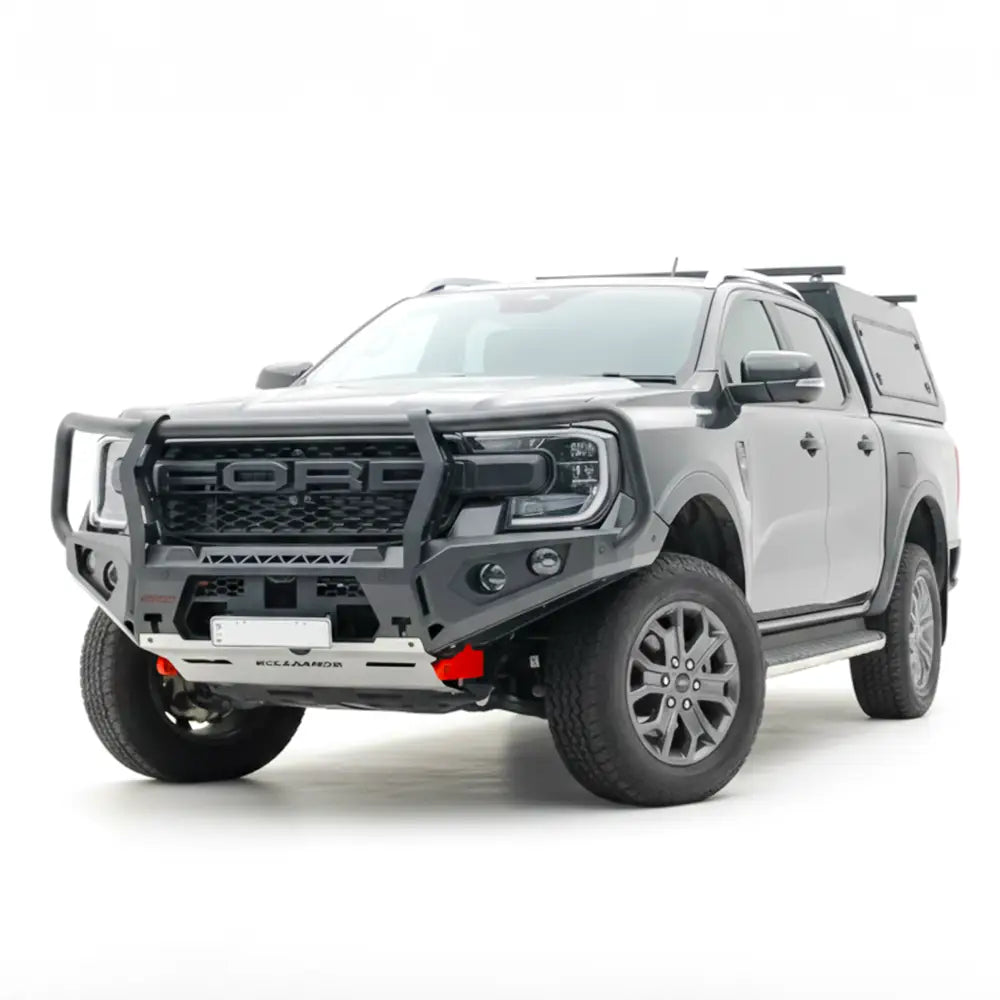

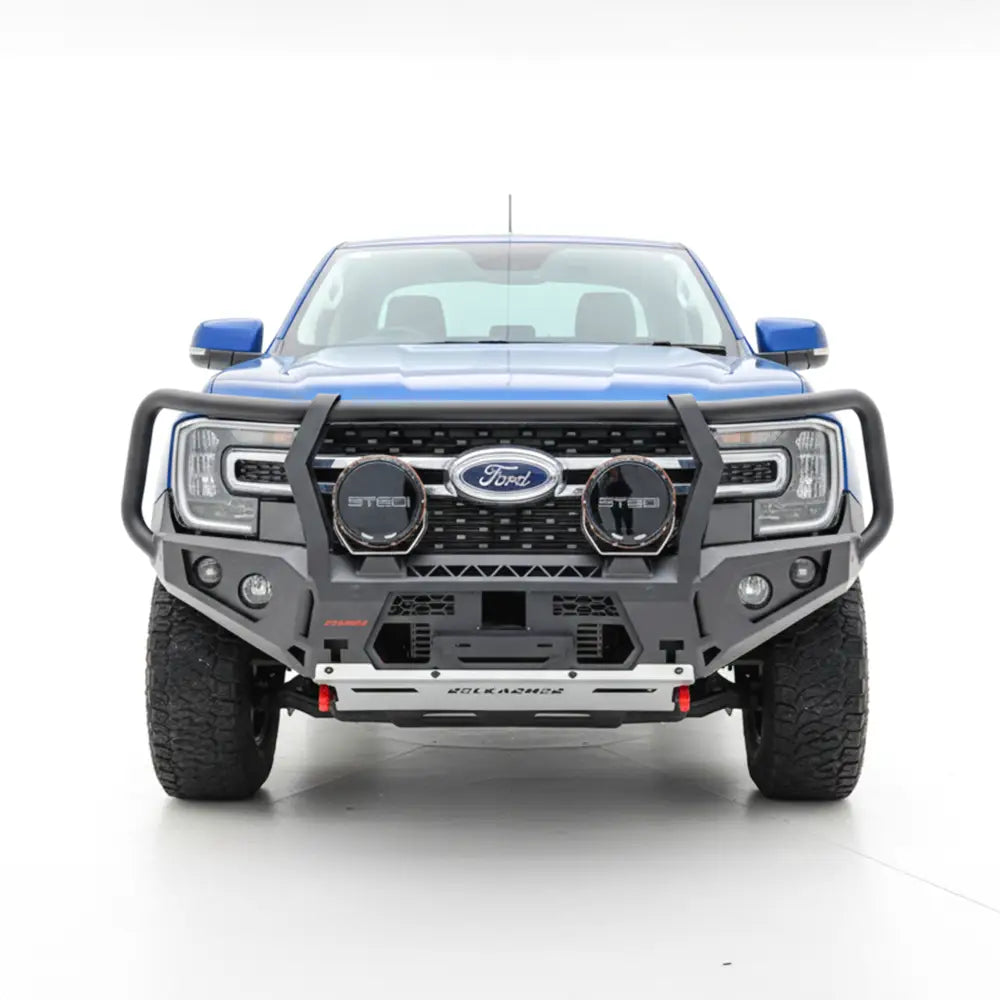

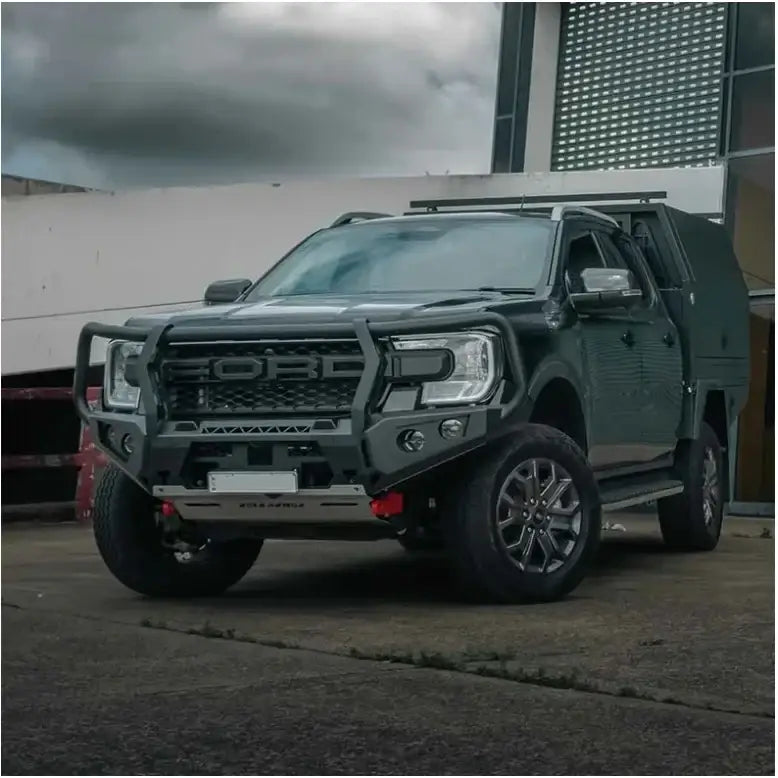

THE ROCKARMOR GT BULL BAR

Designed locally in Australia, Rockarmor's all new GT Bull Bar comes with a whole new look, suited towards today's late model vehicles,  that require maximum protection, while complementing your vehicle's factory aesthetics.

As well as offering your BT-50 with maximum frontal protection, The Rockarmor GT bull bar has been designed to improve your Mazda's off road experience with a number of features that include, higher approach angles, facilities for off road recoveries, and provisions for vital accessories that includes, electric winches, driving lights & uhf communication.

The full bumper replacement Steel bull bar comes packed with a number of beneficial features, which include 51mm Tubing, twin slotted antenna mounts, bash plates, Led Fog lights & Indicators, as well as provisions for high lift jack use, winch and driving lights & and Rockarmor all new soft shackle friendly rated recovery points.

The Rockarmor GT Bull Bar, has been engineered to be compatible with your vehicle safety features which include factory air bags & bumper sensors.

The bull bar is finished in a highly durable black powder coat finish, Optional colour matching is available through your local Rockarmor Distributor.

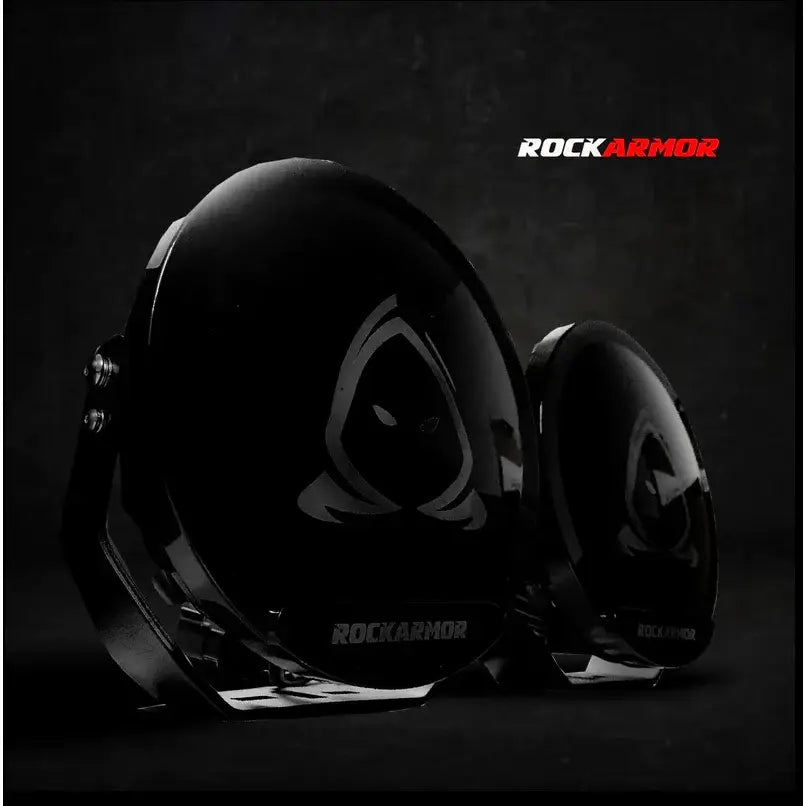

ROCKARMOR PHANTOM 9" LED DRIVING LIGHTS

Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

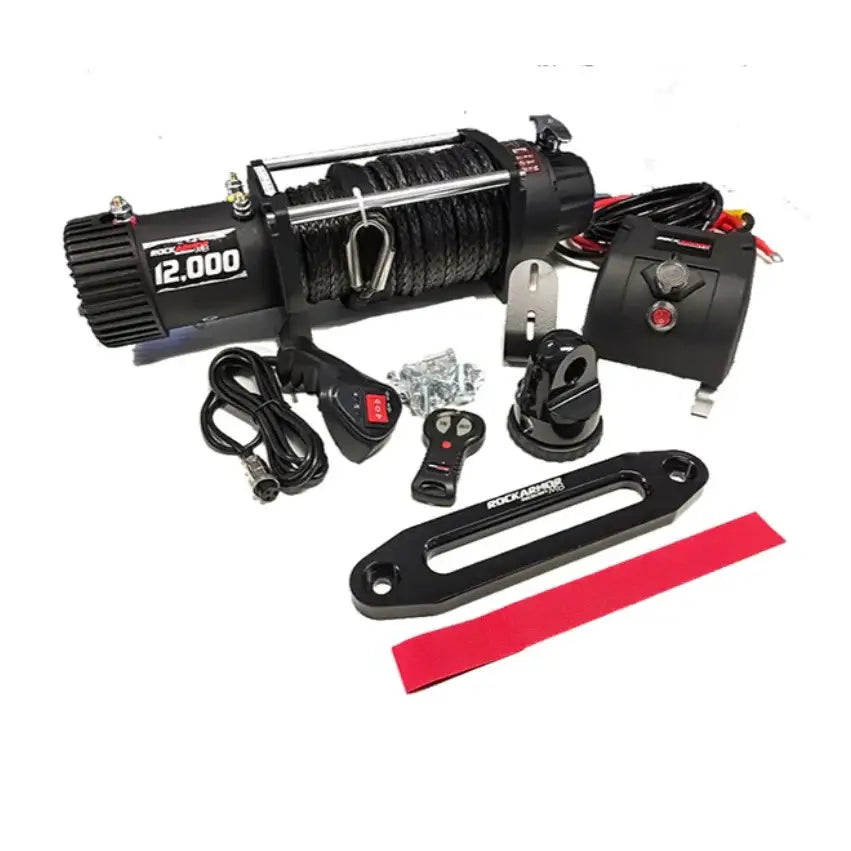

ROCKARMOR RECOVERY M8 12,000 Pound Winch

• 5 Year Manufacturers Warranty
• 7.2HP Motor
• IP67 Rated (2 Hours Fully Submersible)
• Wireless Controller (inbuilt receiver)
• Controller with Extension Lead
• Rockarmor Alloy Hawse Fairlead
• Synthetic Winch Rope Pro Link
• Control Box Mounting Bracket
• Hand Saver Strap
• Installation Guide Book

TECHY STUFF

• IP RATING: IP68
• DISTANCE: 1 LUX @ 1400 METRES
• POWER: 396 WATTS PER PAIR
• LED TYPE: 33 X OSRAM LEDS
• COLOUR TEMP: 6500K
• LUMENS: 13,000 EFFECTIVE LUMENS
• FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
• LENS: POLYCARBONATE
• COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
• DAY LIGHT RUNNING LIGHT: BUILT IN

Specification

• Installation Guide Book
• Line Pull:  5,443kgs / 12,000lbs
•  Motor: Series Wound DC12V / 7.2HP
• Gear Train: 3 Stage Planetary
• Gear Ratio: 216:
• Free Spooling Clutch with Rotating Gear Ring
• IP67 Rated (2 Hours Fully Submersible)
• Synthetic Winch Rope: 9.5mm x 28 metres
• Wireless Receiver: Built into the Control Box
• Isolator Switch: Built into the Control Box
• Drum Size: 64mm x 224mm
• Weight of Winch: 26kgs
• Mounting Bolt Pattern: 254mm x 114.3mm
• Dimensions: 535 X 162 X 170MM
• Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg

INSTALLATION

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.
